Filter Solution

Introduction:

Macrokun produces and supplies monofilament polyester filter mesh(low-elongation) with a wide range of mesh counts and significant advantages compared with traditional polyester woven mesh. High quality and precision with a wide range of from 10 meshes to 460 meshes/inch.

Our polyester monofilament woven screen meshes have excellent tear resistance which permits high fabric tensions to be achieved with virtually any commercially available stretching system. And very good dimensional stability guarantees highly reproducible tension. Precision weaving of dimensionally stable threads produces fabric with predictable and close tolerance counts and mesh opening for consistent registration and sharp resolution

Polyester Filter Mesh Advantages:

Good acid resistance
Temperature resistance
Wear resistance
high tensile strength, Low-elongation
Easy cleaning, good air permeability

Monofilament mesh is woven from yarn that is extruded from heated polyester into a single strand conventional monofilament. Polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its “plastic deformation” point, and the screen will no longer hold tension.

Polyester Filter Mesh Application:

Mainly used for liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, Dust Collection or Separation, Dry and Wet Filter Bags, Sifting, Milling , Automotive, Medical ,Pharmaceutical , Injection Moulding Filter Belts , Loud Speaker and Microphone Front Water-proofing ,Acoustic Appliances Interior ,Design ,Clothing, Refining Decoration ,food and other industrial screening and filtering.

Mesh count		Thread Diameter	Mesh opening	Thickness
Per cm	Per inch	Micron	Micron	Micron
4	10	550	1931	1089
6	15	400	1254	792
7	18	300	1117	594
8	20	300	941	594
8	20	350	891	693
10	25	250	743	495
12	30	150	677	297
12	30	250	578	495
15	40	200	489	340
20	50	80	399	136
20	50	100	380	170
20	50	120	361	204
20	50	150	333	255
22	55	80	356	136
24	60	80	320	136
24	60	100	301	170
24	60	120	282	204
24	60	150	253	255
29	74	120	214	204
32	80	64	236	109
32	80	70	236	109
32	80	80	221	136
32	80	70	221	136
32	80	100	202	170
34	86	100	184	170
36	90	100	169	170
39	100	55	191	94
39	100	80	168	136
39	100	100	149	170
43	110	55	145	136
43	110	70	145	136
43	110	80	145	136
47	120	55	150	94
47	120	71	135	121
53	135	48	134	82
53	135	55	127	94
53	135	64	118	109
53	135	71	112	121
59	150	48	115	82
59	150	55	109	94
59	150	64	100	109
64	160	48	103	82
64	160	55	96	94
64	160	64	88	109
72	180	48	86	82
72	180	55	80	94
77	195	55	71	94
80	200	48	73	82
90	230	40	68	68
90	230	48	60	82
100	250	40	51	68
110	280	40	43	68
120	300	34	42	58
120	300	40	37	68
130	330	34	36	58
140	350	34	32	58
150	380	30	31	51
165	420	31	25	53

Nylon filter mesh

Artline’s Nylon Filter Mesh is made of monofilament PA6 or PA66 yarn/thread which is ideal for straining, sieving or filtering most liquids, powders or sledges after weaving, Artline’s fabrics undergo a finishing process to add the properties required for specific applications. During the finishing process, the fabric is scoured to remove any foreign substances and the yarns are then stabilized within the weave in order to eliminate shrinkage by a process known as ‘heat setting’.

Advantages are:

They can be woven with great precision to give exact and regular apertures so the mesh openings are uniform
Very smooth surface so that the filtered particles will easily separate from it
They have great strength and elasticity Wear-resistant, Alkali-resistant
Easy to clean and light in texture

Monofilament Nylon 6 or Nylon 6.6 Filter Mesh

Monofilament Nylon is a versatile material due to its great strength, flexibility, long life and resistance to abrasion. Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14. The term ‘Monofilament’ means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multifilament material. These monofilament threads are perfectly round in section and are extruded to very precise and uniform diameters.

AVAILABLE TYPES

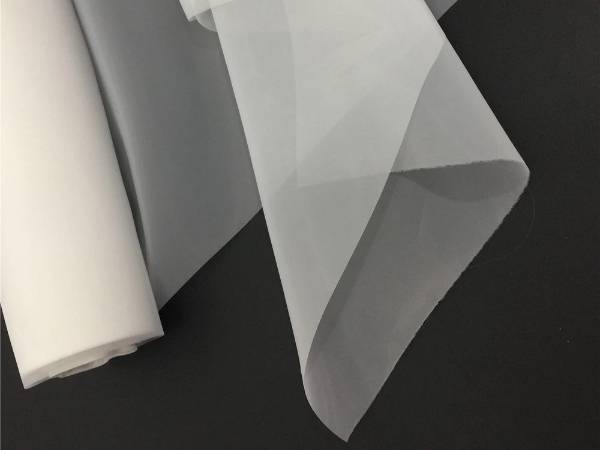

Filter Fabric

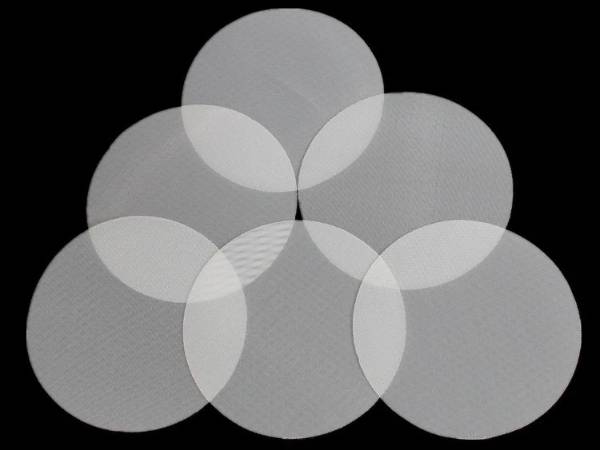

Filter Disc

Filter Bag

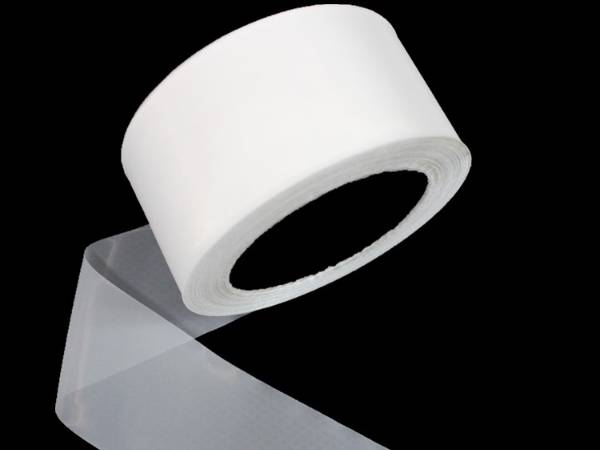

Filter Belt/Ribbon

Filter Tube

Nylon Filter Mesh Application:

Collection of Cells and Algae
Particle Analysis
Large Particulate Filtration
Background Filter for automated particle imaging system
Pre-filtration of Solvents
Paint Monitoring
Medical Filtration (Blood Filtration)

Centrifugal sifters

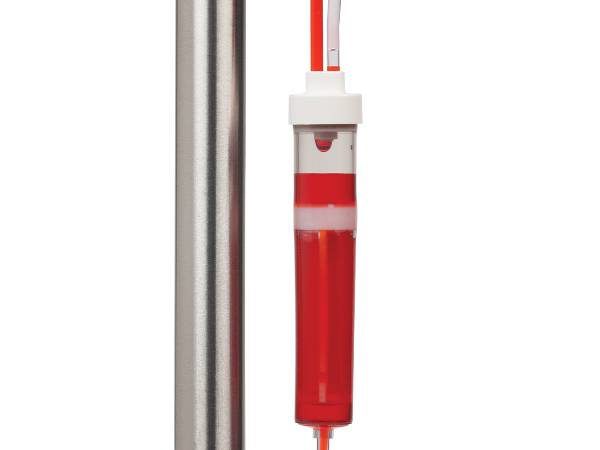

Blood-tubing-filter — Blood tubing filter

For example :

Mainly used in liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, food and other industrial screening and filtering.

Artline also can supply and offer:

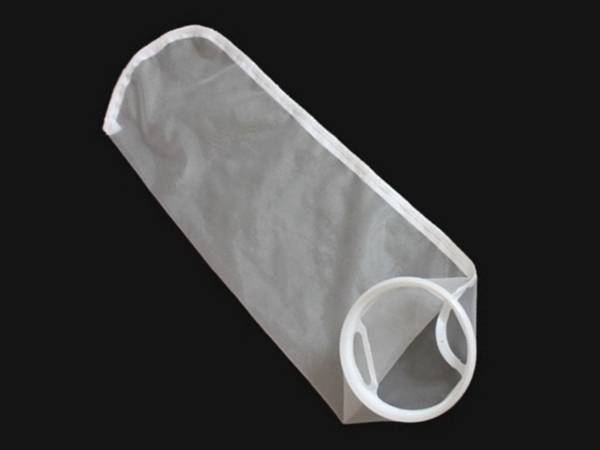

mesh filter bag

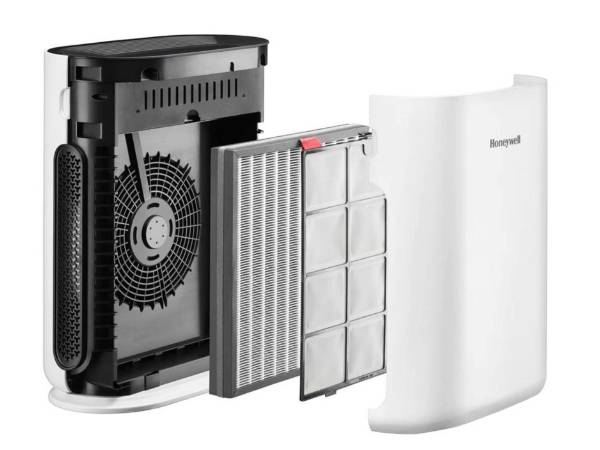

Structures of air purifier and we can see the pre filter is made of nylon filter mesh.
Hot or Cold Cut Mesh Parts

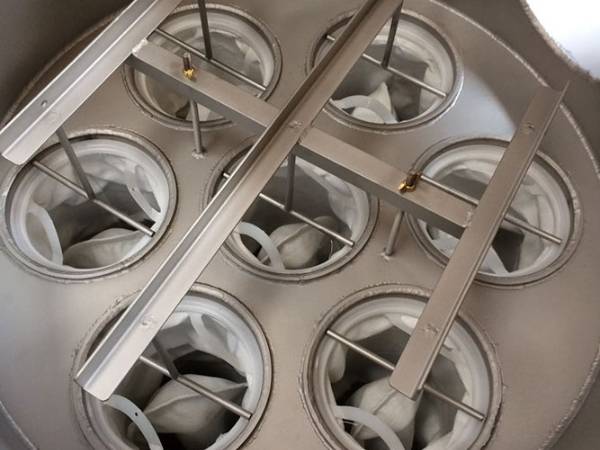

Multi bag filter housing and several bag filters in it.
Heat-sealed Mesh Filter Bags

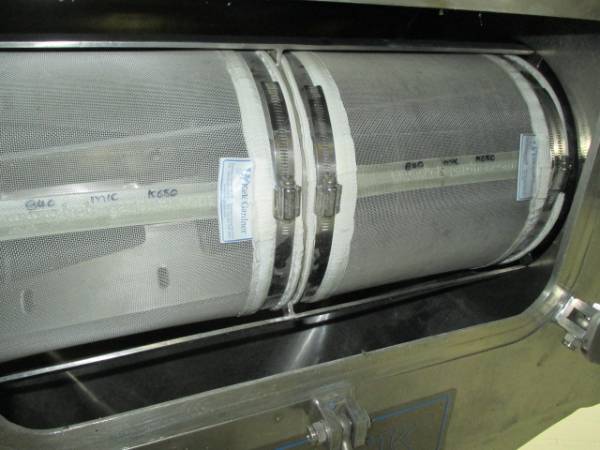

A centrifugal sifters with basket type nylon filter mesh.

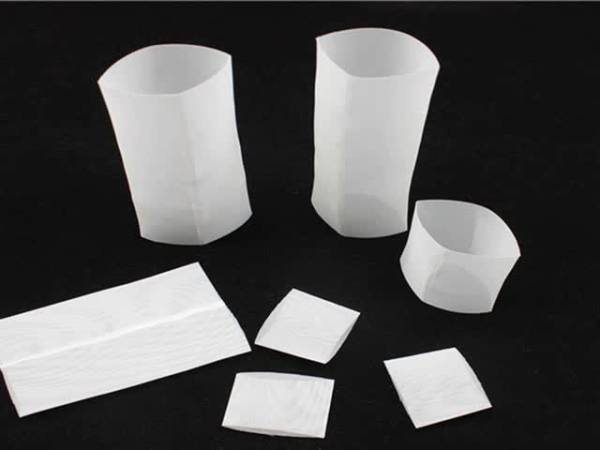

Welded Filter Tubes

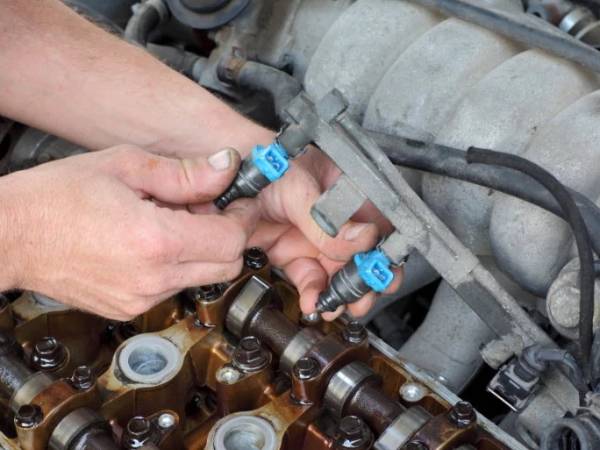

A man is inspecting the injector of car.
Stamping Mesh Filter Elements

Mesh count		Thread Dia	Mesh opening	Thickness
Per cm	Per inch	Micron	Micron	Micron
4	10	550	1950	1100
5	13	500	1500	1000
6	15	400	1267	800
7	18	350	1079	700
8	20	350	900	700
9	23	250	861	500
9	23	300	811	600
10	25	250	750	500
10	25	300	700	600
12	30	250	583	500
12	30	300	533	600
14	36	200	514	340
16	40	200	425	340
20	50	150	350	255
20	50	200	300	340
24	60	150	267	255
28	70	120	237	204
30	76	120	213	204
32	80	100	213	170
36	90	100	178	170
40	100	100	150	170
43	110	80	153	136
48	120	80	128	136
56	140	60	119	102
64	160	60	96	102
72	180	50	89	85
80	200	50	75	85
100	250	43	57	73
110	280	43	48	73
120	300	35	48	60
120	300	43	40	73
130	330	35	42	60
130	330	43	34	73
140	350	35	36	60
157	400	43	25	73
180	450	39	20	66
200	500	39	15	66
220	550	39	10	66
240	600	39	5	66
